Feature:
1. Power Converter: This power supply transformer can convert 110/220V AC input to 12V DC constant voltage output, very reliable.
2. Safe Protection: Designed to have short circuit protection, overload protection and over voltage protection for better safety.
3. Extensive Usage: Suits for indoor applications including LED strip light, LED display, 3D printer, amplifier, radio and so on.
4. Efficient Works: Has 1200W rated power and 100A rated current, also has low power consumption and small ripple, high efficiency.
5. Easy to Install: Comes with a compact size and a light weight as well, the installation can be quickly completed in minutes.
Specification:

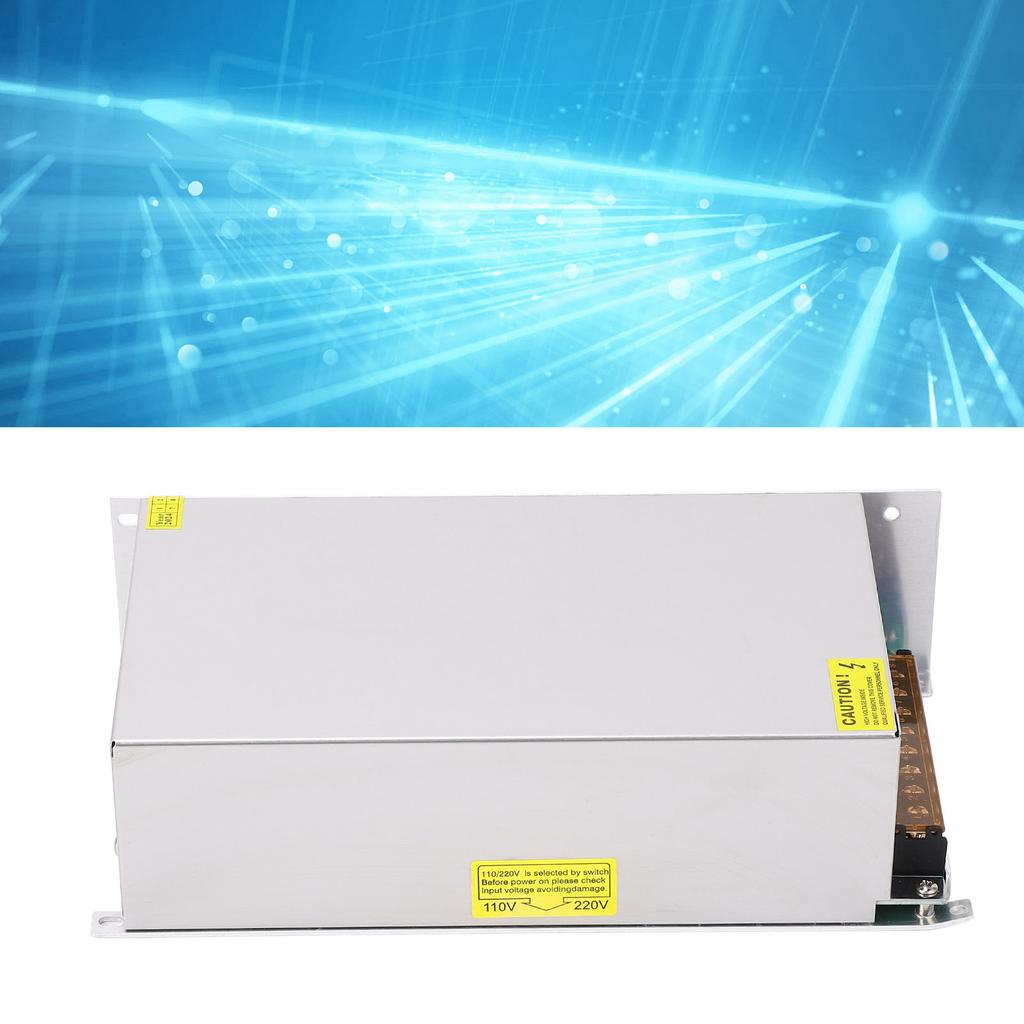

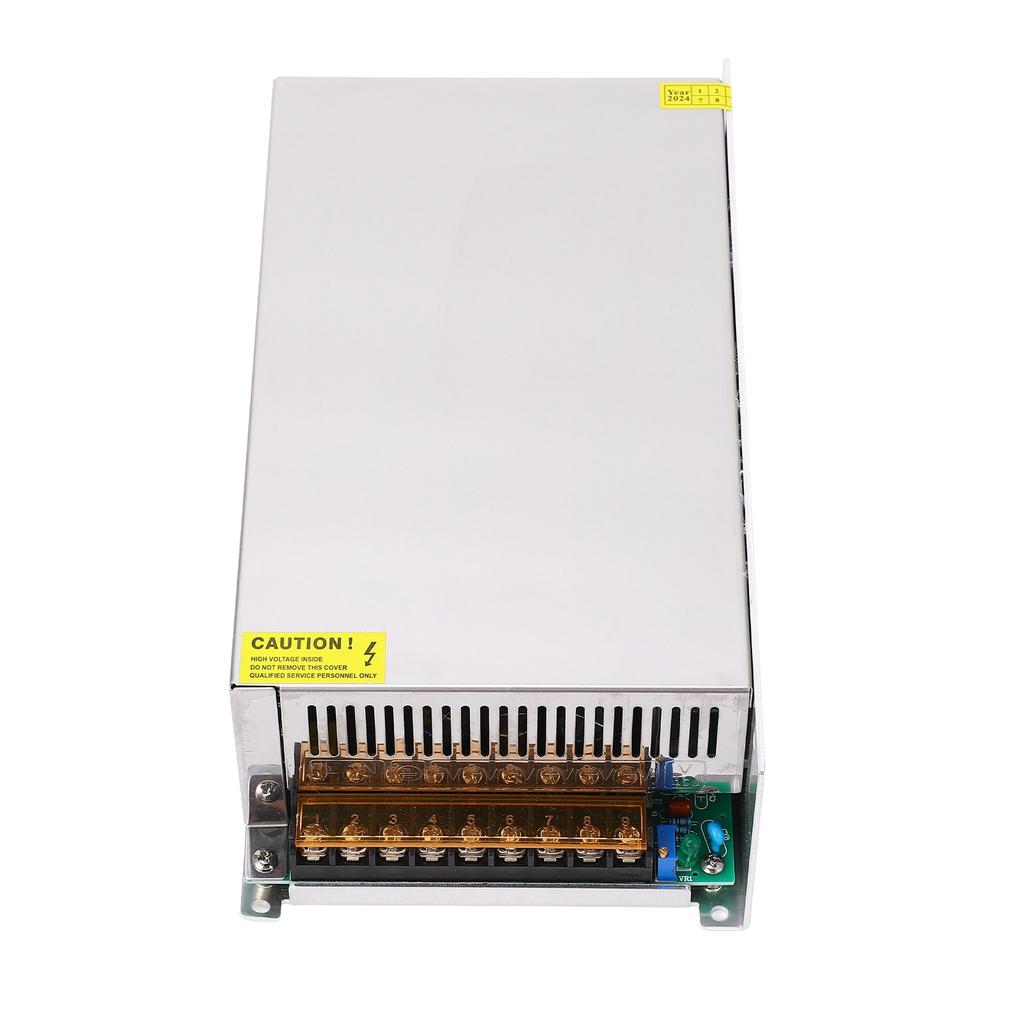

Item Type: Power Supply Converter
Material: Aluminium Alloy
Output Features
Output Voltage
12V
Rated Current
100A
Ripple
120mVp-p
Output Accuracy
±2%
Line Regulation
±10%
Load Regulation
±20%
Rated Power
1200W
Output Range
12V
Setup, Rise and Hold Time
250ms, 30ms, 20ms at 220VAC
Input Features
Input Voltage Range
110/220V
Input Current
6A
Frequency Range
47-63HZ
Efficiency
85%
Electric Shock
40A at 230V
Current Leakage
<2Ma at 230V
Protection Features
Overload Protection
105-150% rated power, automatic recovery.
Short Circuit Protection
Turn off the output when short circuited, and recover automatically after release.
Other Functions
Environmental Parameters
Working Temperature and Humidity
-40℃-+50℃ at 100% l0ad, +60℃ at 60% l0ad, 20%-90%RH.
Storage Temperature and Humidity
-20℃-+85℃, 10%-95%RH
Humidity Drift
±0.03%/℃ at 0-50℃.
Vibration
10-500HZ, 2G 10min/1 cycle, PERLOD ROR 60min.EACHAXES
Size (Approx.)
240 x 125 x 65mm / 9.45 x 4.92 x 2.56in
Environmental Parameters
Safety Standards
MEET GB4943
Voltage Resistance
I/P-0/P: 1.5KVAC; I/P-FG: 1.5KVAC; 0-P/FG: 0.5KVAC, 1min.
Insulation Resistance
I/P-0/P, I/P-FG, 0/P-FG: 500VDC 100M Ohms.
Package List:
1 x
Power Supply Converter
Note:
1. All parameters are measured under rated voltage 220VAC input, rated load, ambient temperature of 20 degrees Celsius, and humidity of 70%.
2. Accuracy: Including setting error, line adjustment rate, load adjustment rate, etc.
3. Ripple Test: Connect the power supply and the load with a 30CM long stranded wire, connect 0.1u and 47u capacitors at the load end, and measure it with a 20Hz oscilloscope at the load end.
4. Line Regulation Rate: Under rated load, the input voltage is measured from low to high change.
5. Load Regulation Rate: The measured output is measured from 0% load to 100% load change.
6. Each channel can output the maximum current, but the sum of the total load cannot exceed the maximum output power.
