Black 7/8" Motos Motorcycle Electric Heated Handle Motorbike Heating Grips Set

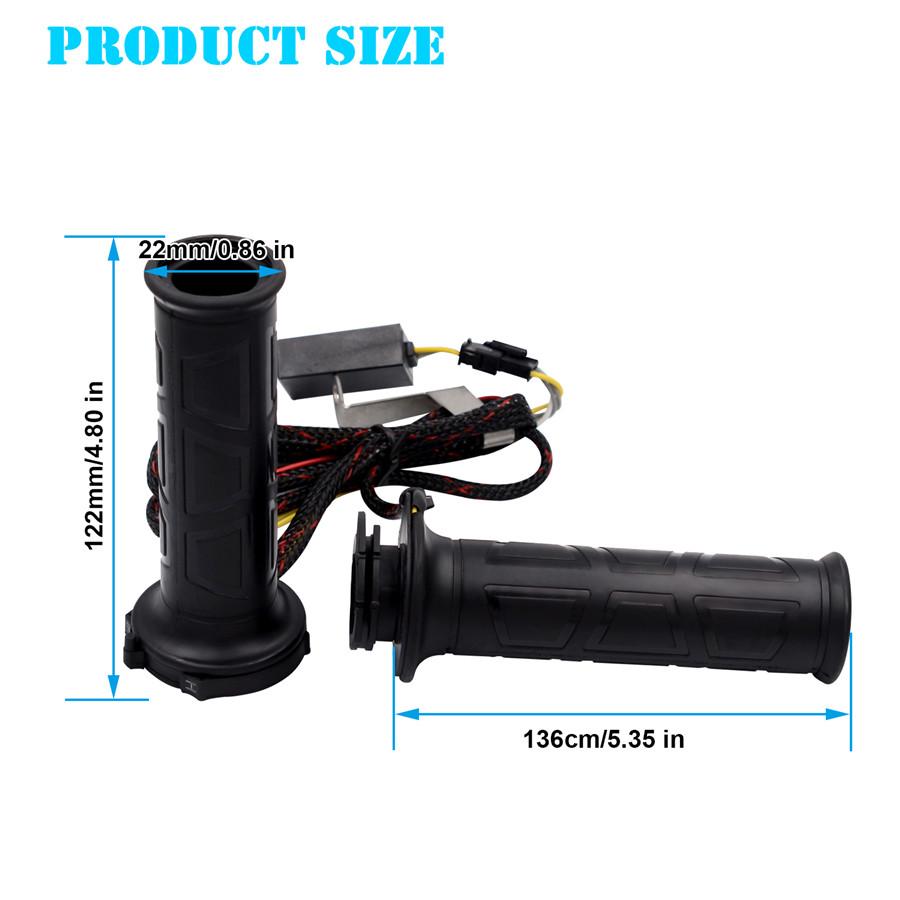

[product name]: electric handle [product color]: black [hand length]: left hand: 122mm (4.8"); right hand: 136mm (5.4") [handle diameter]: 22mm (7/8") [Input voltage]: 12V [product power]: 12W-24W adjustable [Handle temperature]: 50 ° C -70 ° C adjustable [Handle type]: Tongkou electric handle [Switch Type]: Multi-speed adjustable switch [Applicable models]: Handle 12V motorcycle with diameter of 22MM

[Notes]: [1] When installing the left hand, do not twist the handle too much. Excessive twisting will cause the heating wire to shift.

[2] With the balanced iron model, please adjust the balance iron installation position. Do not squeeze the handle when tightening the screw. The balance iron is slightly separated from the handlebar. If the installation position of the balance iron cannot be adjusted, please separate the balance between the balance iron and the handle. Excessively squeezing the handle will cause difficulty in the toggle of the handlebar, and the surface of the heating wire will be abnormally damaged.

[Installation Instructions]: [1] Remove the original driver's handle

[2] The inner hole of the left hand is moistened with soapy water, and the twisting amplitude during installation cannot be too large.

[3] When the balance iron is installed in the left hand, the balance iron position is adjusted to be slightly separated from the handlebar, and the handle cannot be squeezed when the screw is tightened.

[4] Use the left hand handle to slide on the steel pipe, remove the balance iron, and fix a few drops of 502 glue from the tail of the handle.

[5] Power line, the red line is connected to the positive pole, the black line is connected to the negative pole, and the reverse connection temperature cannot be adjusted.

[6] The left hand handle should be installed with enough rotating residual power when installing the power cable.

[product advantage]: [1] 12V voltage, 22MM handle inner diameter, suitable for most motorcycles

[2] The product sets high and low level switch, can adjust the handle temperature at will (50°C-70°C adjustable)

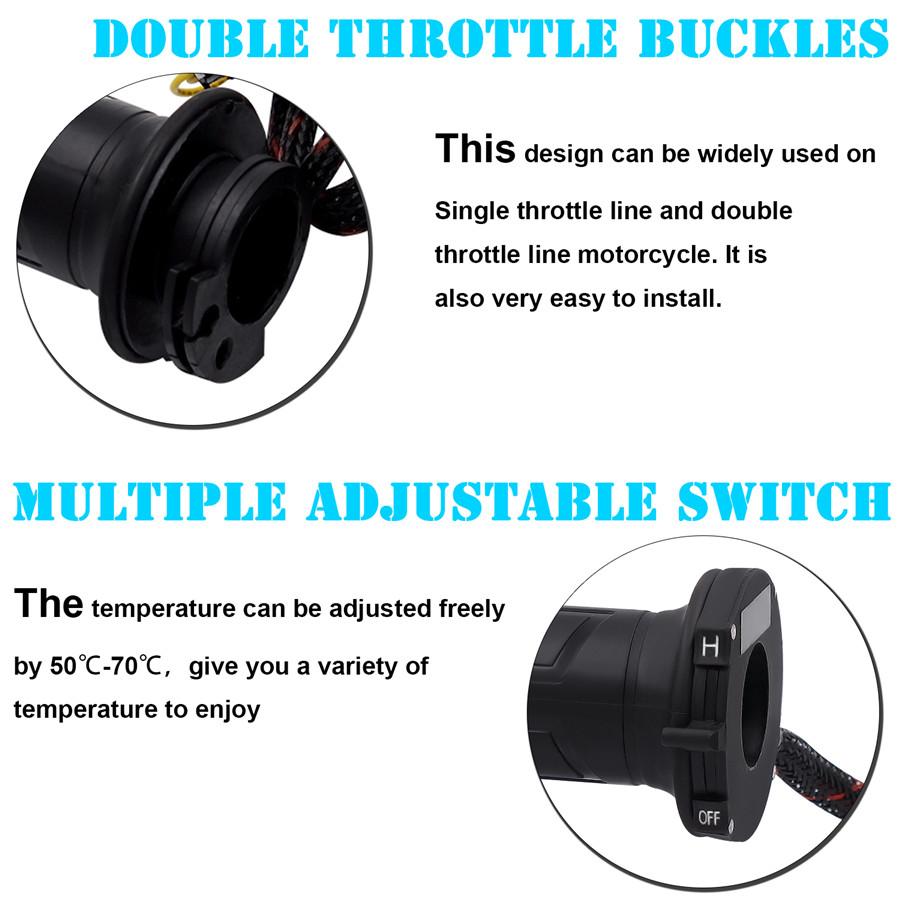

[3] Double throttle line buckle, wider installation range

[4] The design of the port does not affect the installation of the handlebars on the outside of the handlebars, so that the decorative accessories such as lamps are more beautiful and convenient.
