Magneto Stator Generator For TGB Blade Target 400 425 500 525 550 Quad 924415E

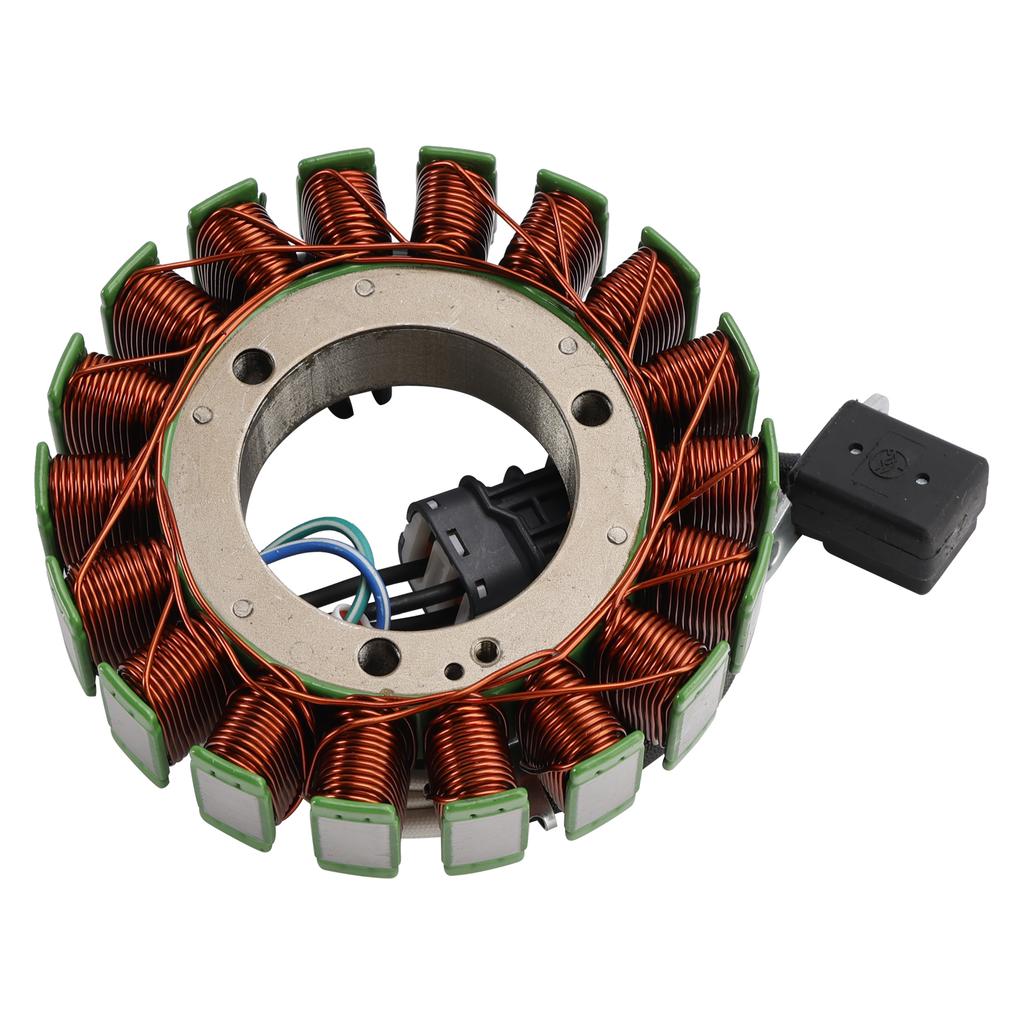

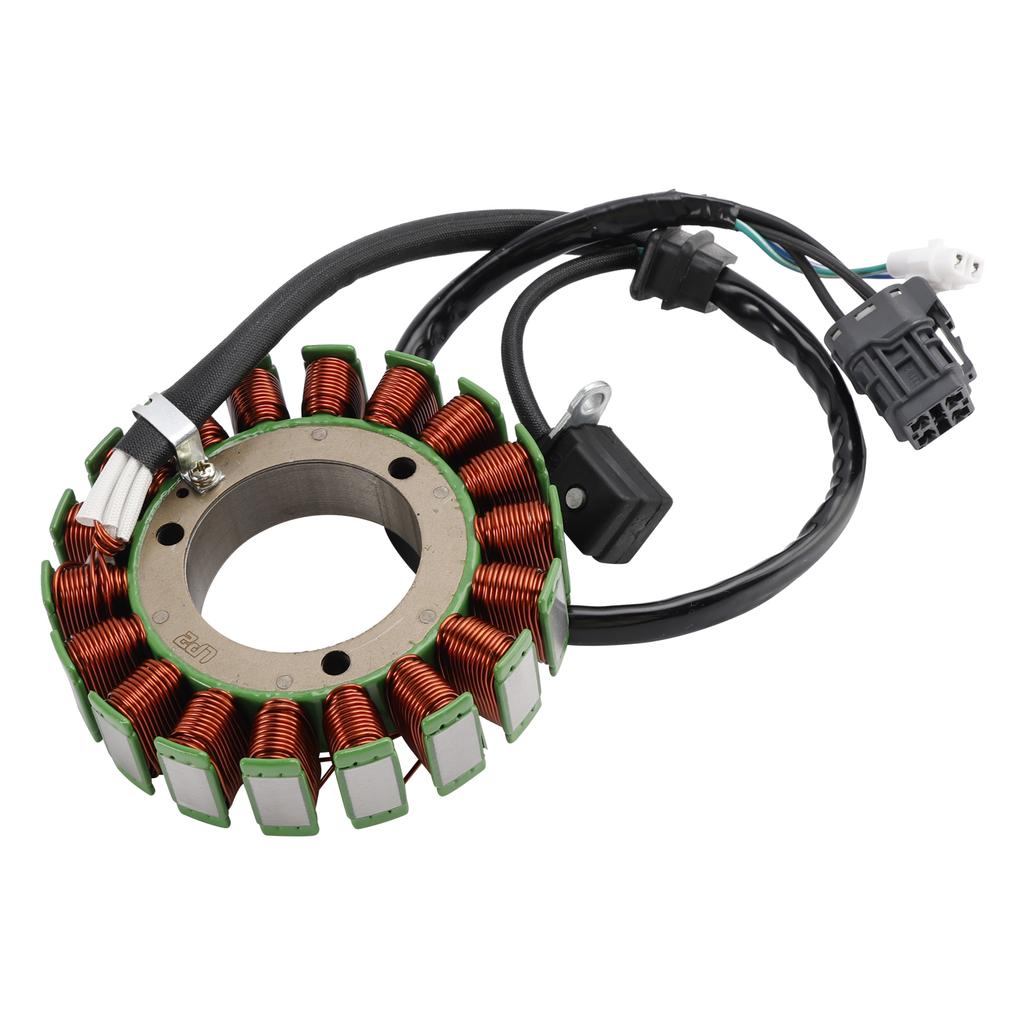

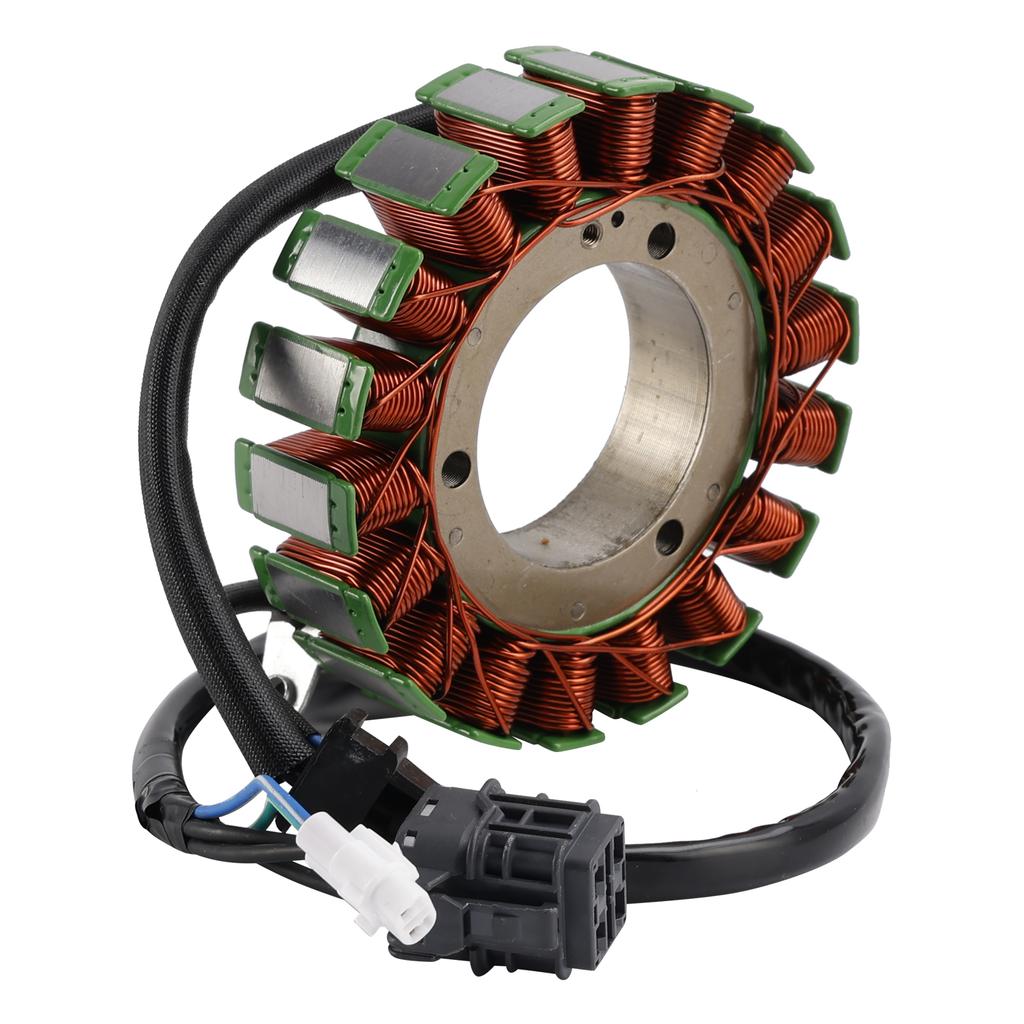

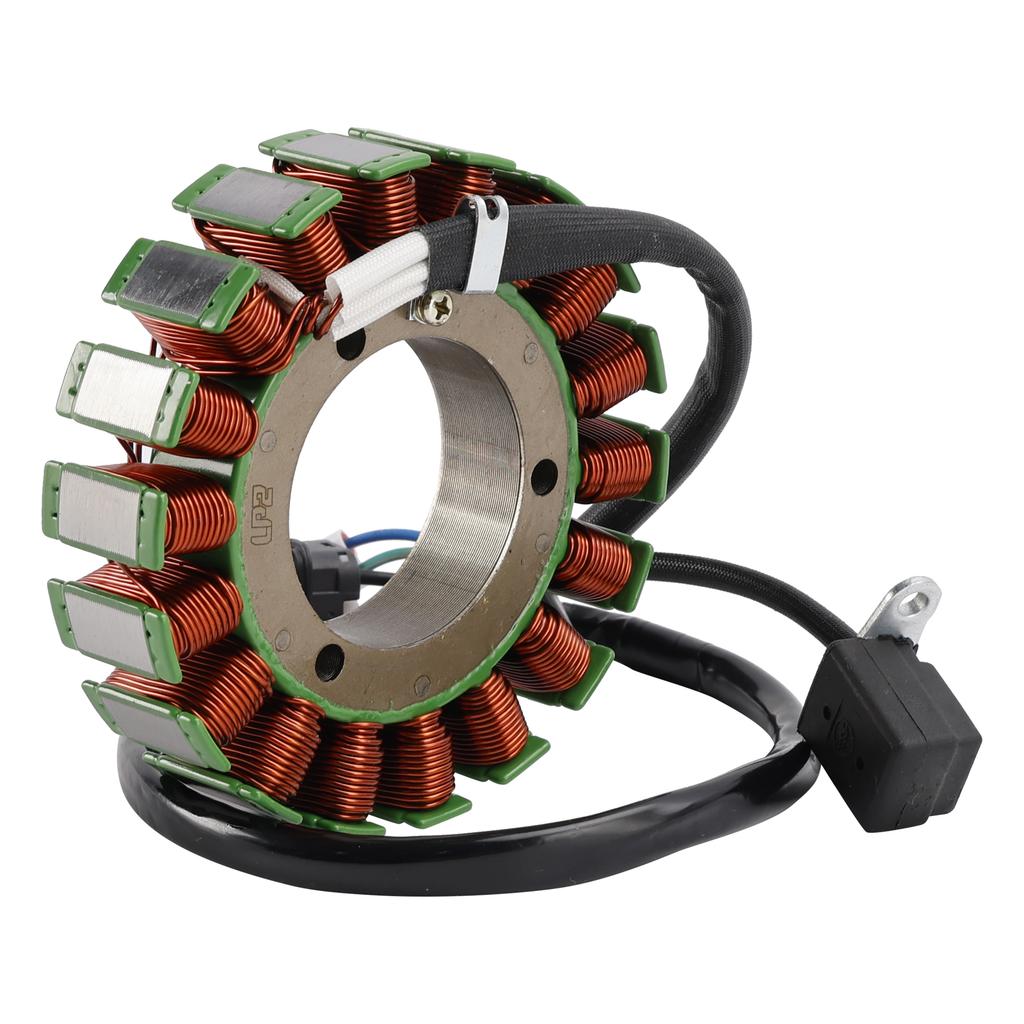

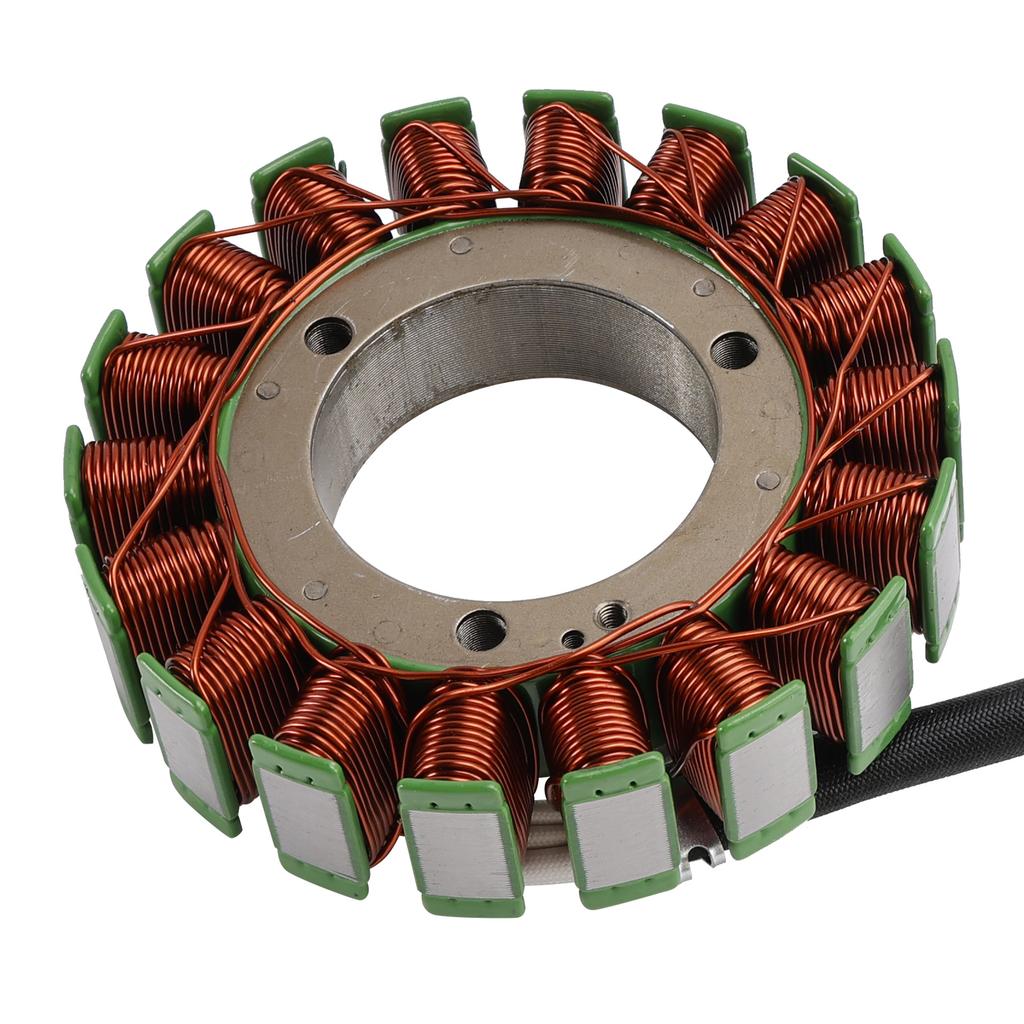

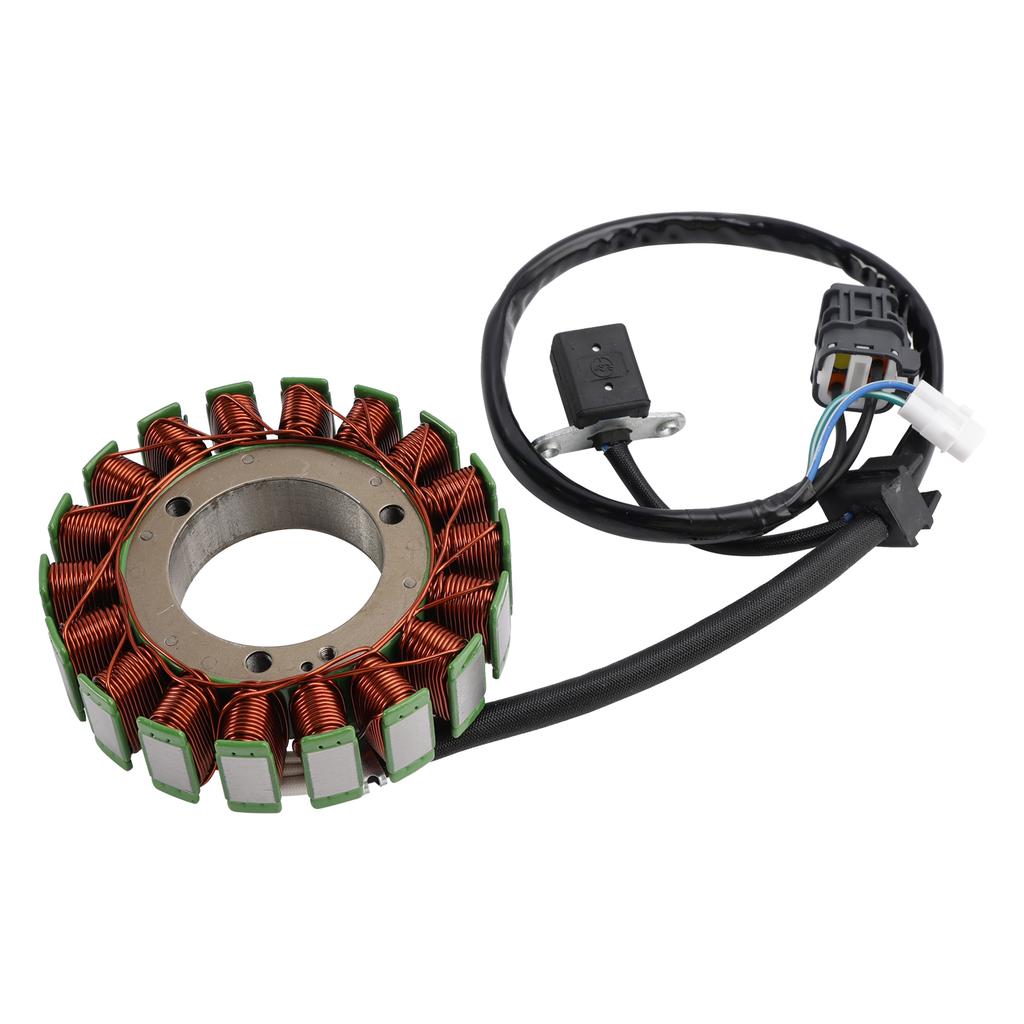

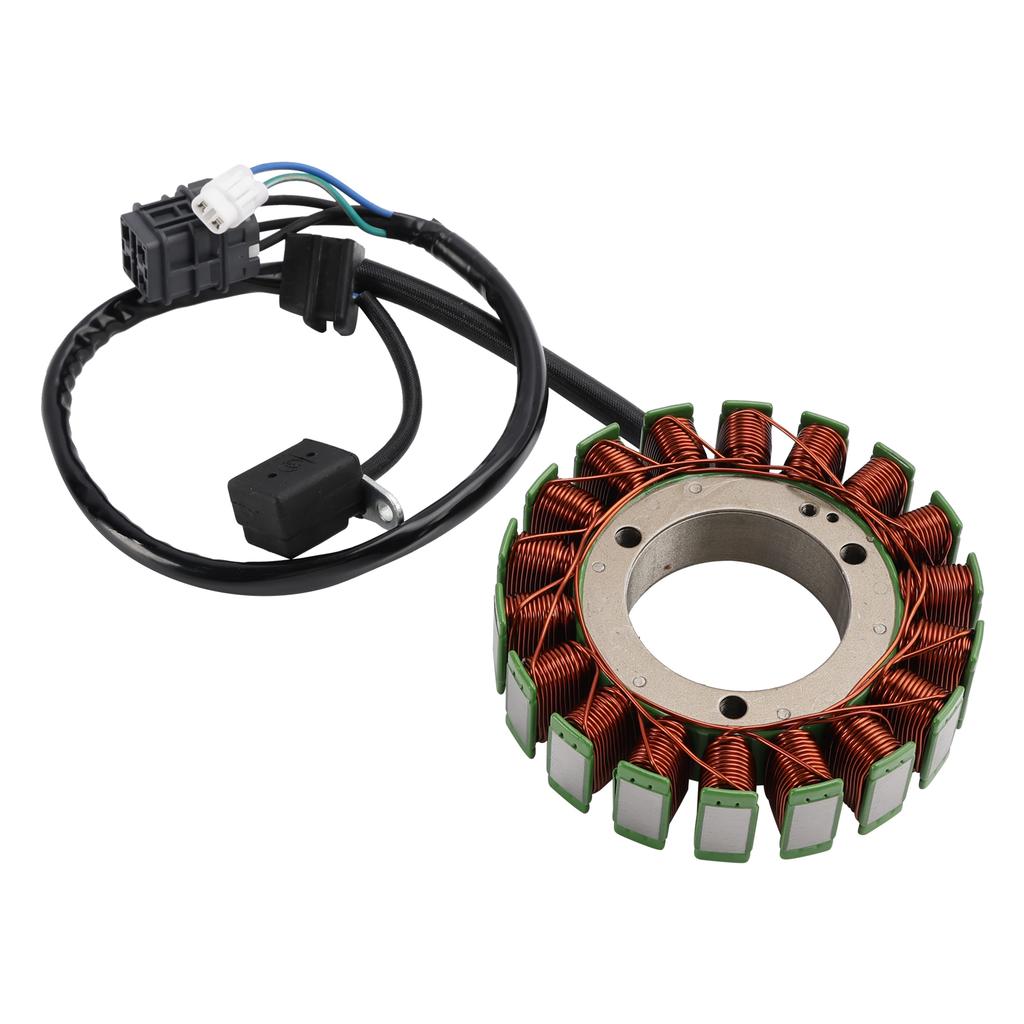

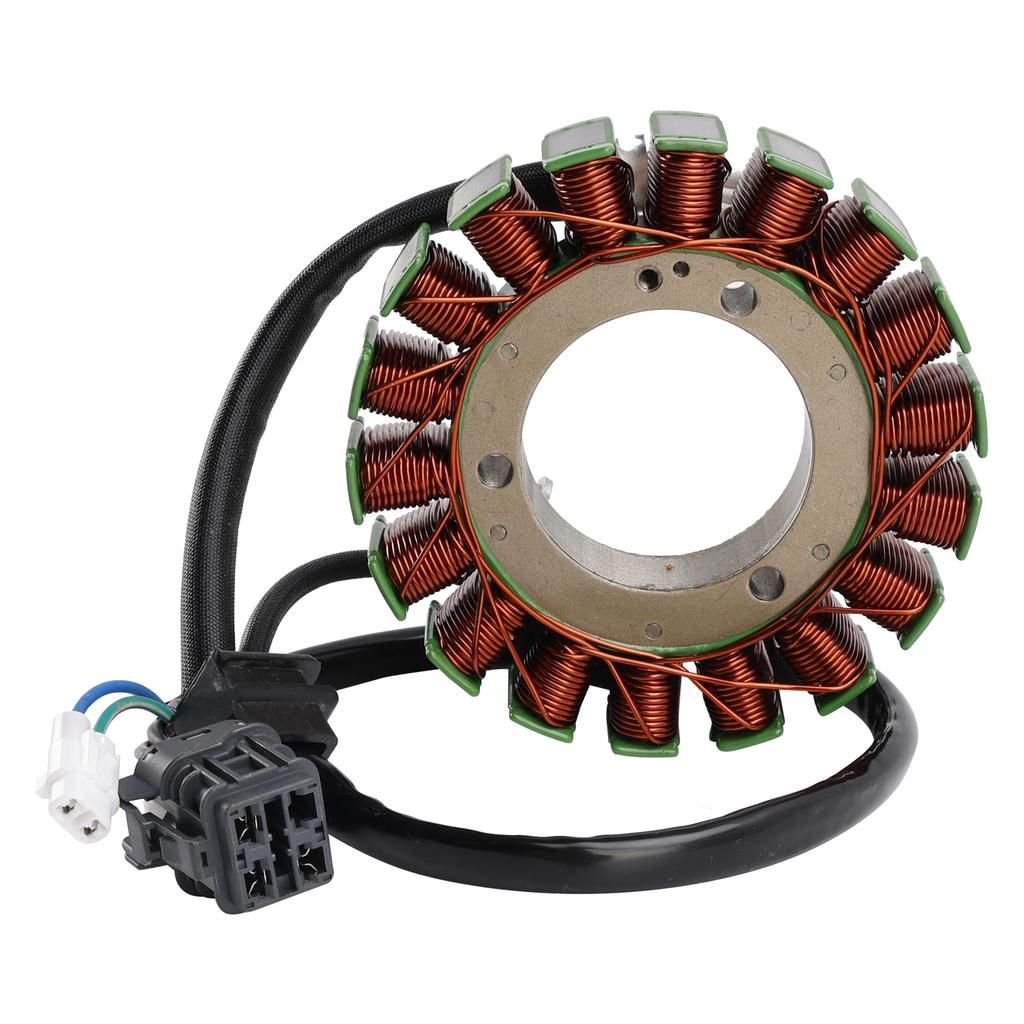

18-Pole Magneto Generator Stator Fit for TGB BLADE TARGET 400/460/500/525 /550/600

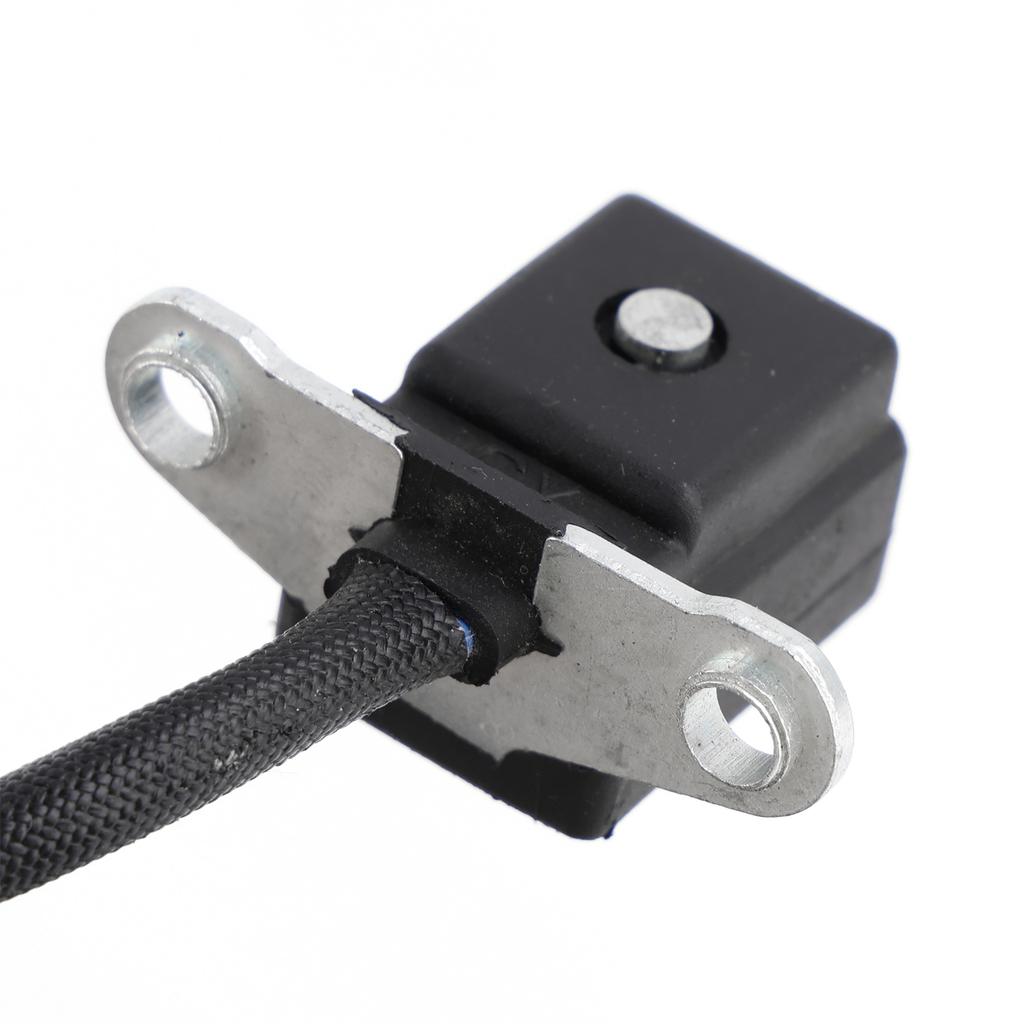

Features: Direct replacement to your original unit Plug-and-play, direct fit, easy installation. Highest grade lamination materials. Pick up pulsar coil included. Connector included. Rubber grommet included. All products shipped are tested.

Specifications: Condition: Aftermarket 100% Brand New Type: Stator Coil

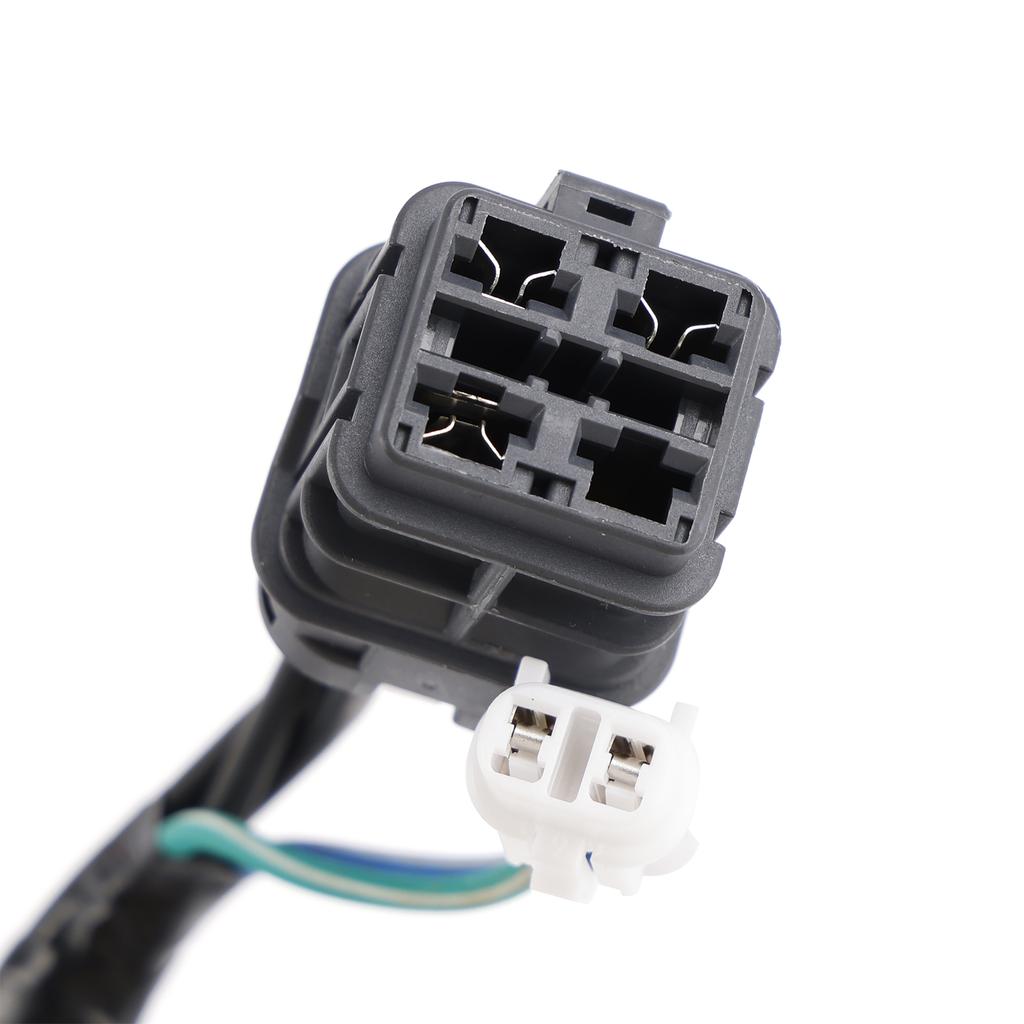

other specifications: Number of wires: 5 Number of plugs: 2 (1x 3-pin Square shape plug, 1x 2-pin Oval shape plug) Number of pins: 3 + 2 Number of fixation holes: 3 Number of poles: 18

Please compare the number of pins and plugs with the old part before purchasing.

Size: Inner diameter: 54mm Outer diameter: 115mm

Replacement Part Number: 924415E 924415A 924415B 927995A

(Always compare part numbers to your parts schematics and cross reference appropriately.)

Fits Make/Model: 924415E Fit for TGB ATV Blade 400 Fit for TGB ATV Blade 425 Fit for TGB ATV Blade 500 IRS 2015 Fit for TGB ATV Blade 500 IRS Facelift 2014 Fit for TGB ATV Blade 500R Fit for TGB ATV Blade 500R Facelift Fit for TGB ATV Blade 525 4x2 onroad Fit for TGB ATV Blade 525 4x4 IRS offroad Fit for TGB ATV Blade 550 (Vergaser) Fit for TGB ATV Blade 550 LT (Vergaser) Fit for TGB ATV Blade 550 Winter Edition (Vergaser) Fit for TGB ATV Target 460 IRS 2011 Fit for TGB ATV Target 500 4x4 IRS Fit for TGB ATV Target 500R Fit for TGB ATV Target 525

924415A Fit for TGB ATV Blade 425

924415B Fit for TGB ATV Blade 550 Fit for TGB ATV Target 550 IRS Sniper

927995A Fit for TGB ATV Outback 425 2007-2008 Fit for TGB ATV Blade 425 Fit for TGB ATV Blade 550 Fit for TGB ATV Blade 600LT E4 Fit for TGB ATV Blade 600LT T3b Fit for TGB ATV Blade 600SE T3b Fit for TGB ATV Blade 600LTX T3b Fit for TGB ATV Blade 600LTX E4 Fit for TGB ATV Blade 600LTX E5 Fit for TGB ATV Blade 600LTX MAX E5 Fit for TGB ATV Target 600 E4 Fit for TGB ATV Target 600 T3b

Please check and comfirm the number of stator poles is the same as ours and if your connectors and harness looks like the one in the photo before purchasing.

(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included: 1x 115mm Stator Generator
