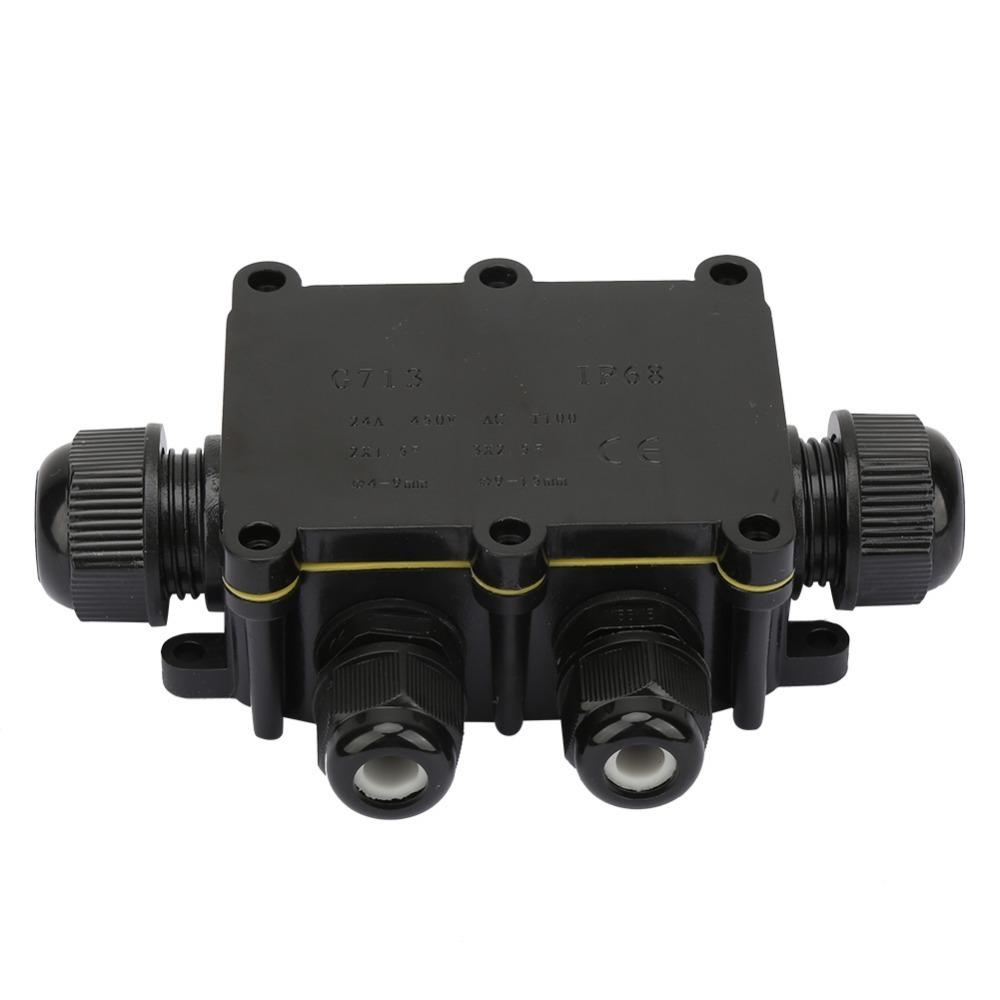

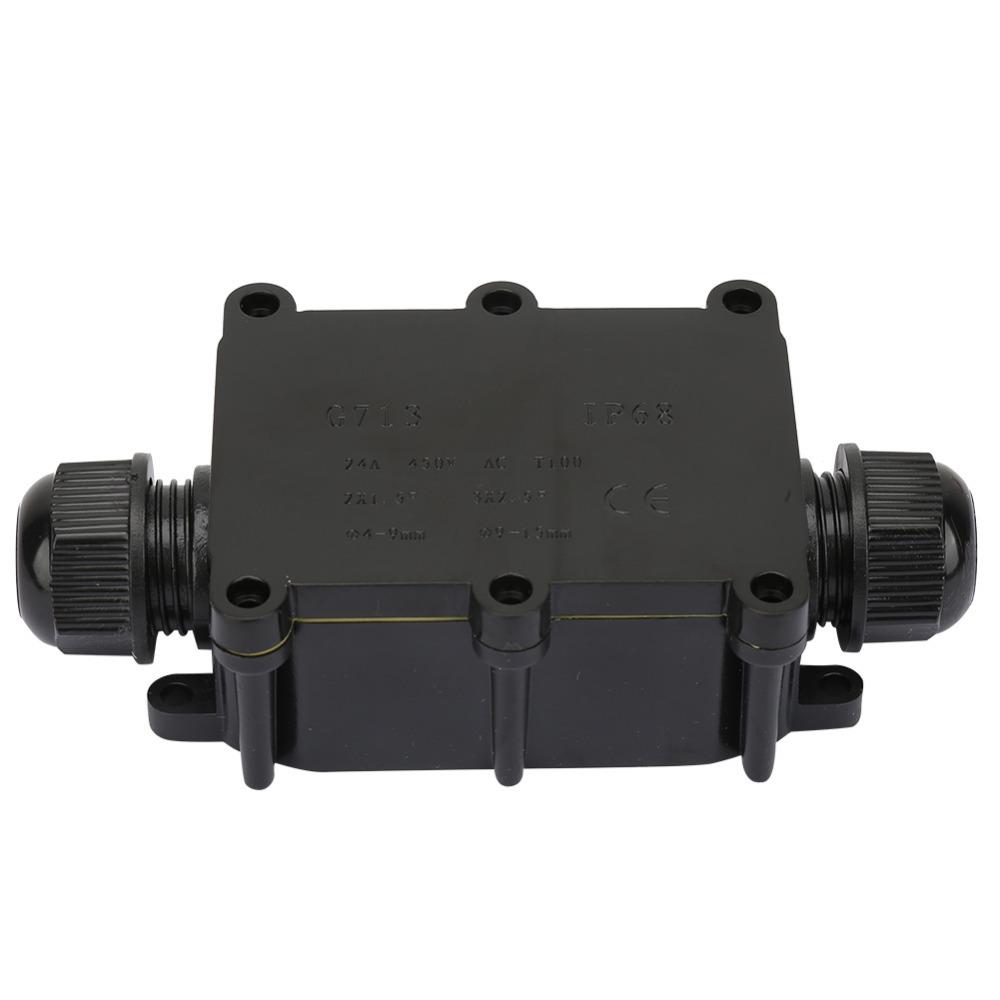

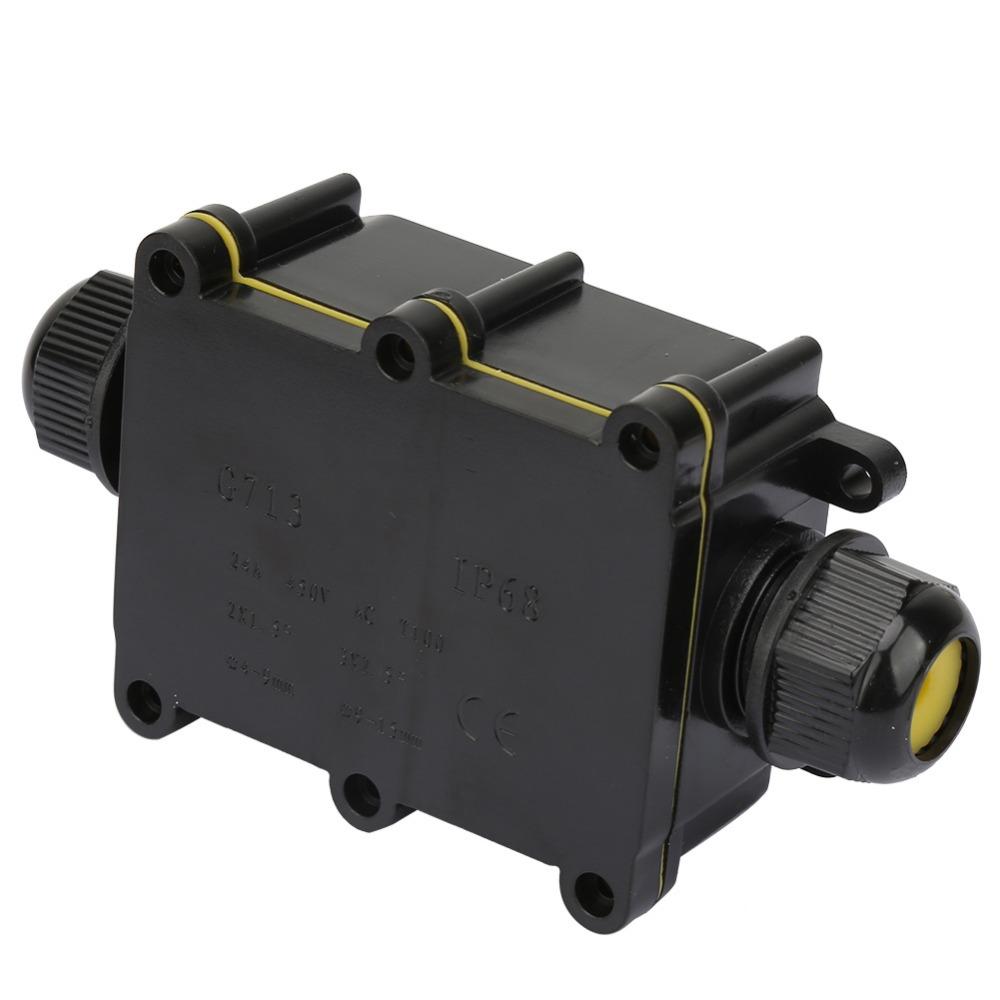

Available in three optional models: 2-way (1 in 1 out), 3-way (1 in 2 out), and 4-way (1 in 3 out). Rated current: 24A; Rated voltage: AC 450V. Applicable cable size range: Metric units 4-9mm (0.16-0.35in), 9-12mm (0.35-0.47in), 12-15mm (0.47-0.59in).
The outdoor junction box boasts an IP68 high-level waterproof and dust proof class, paired with 94-V2 fire retardant performance. It is weatherproof, humidity-proof, and can safely withstand harsh conditions such as strong sunlight, wet environments, rainy or snowy days, providing comprehensive protection for your junction cables.
It supports versatile installation methods: can be installed underground or on walls, horizontally or vertically, suitable for both indoor and outdoor use. Simply tighten the exterior screws with a screwdriver to achieve a complete seal. The box and cover are detachable for convenient wiring, and the precision-cut silicone seal ring ensures a tight fit. By rotating and tightening the cable gland nuts at both ends, you can firmly lock and seal the cables, blocking water or dust ingress.

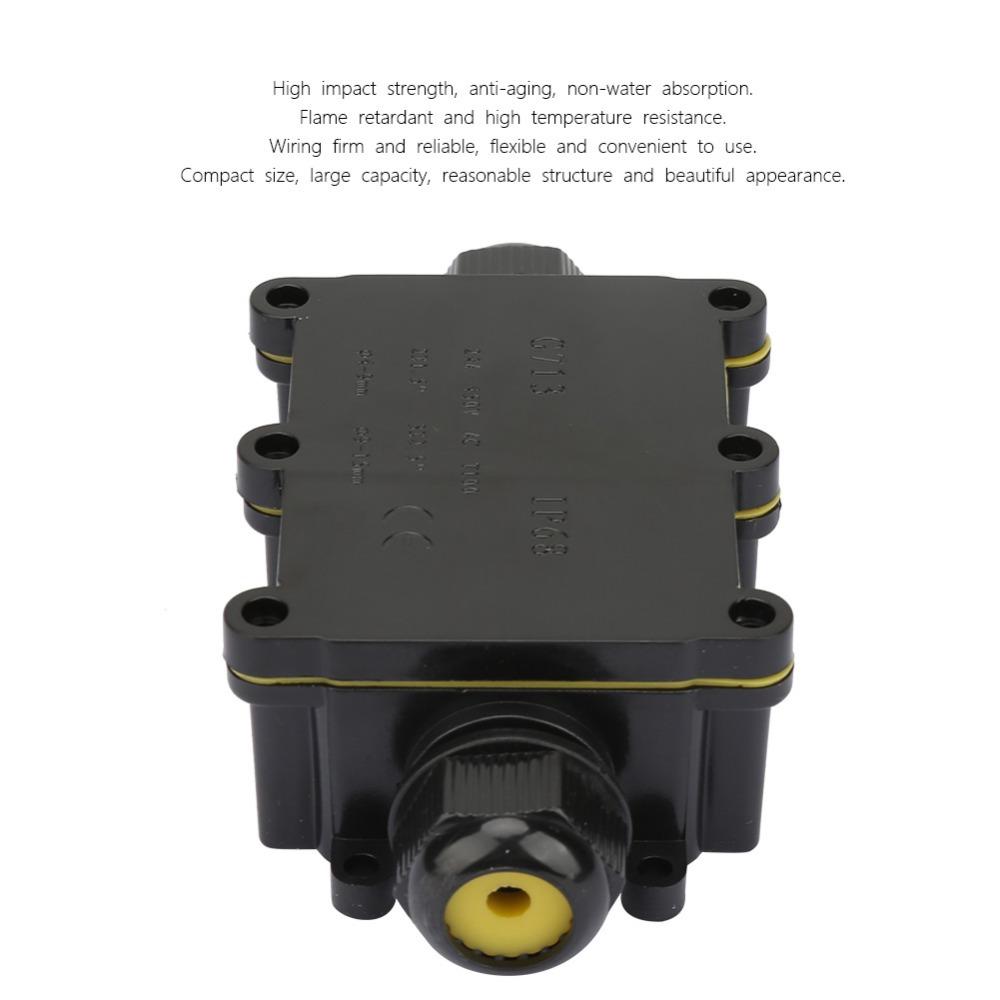

Crafted from premium PC material, this junction box (available in 2-way, 3-way, and 4-way options) delivers excellent waterproof performance. The robust PC housing is impervious to cracking, fading, erosion, and high temperatures, ensuring long-lasting durability for years of reliable use.
This junction box effectively protects the connections of outdoor electrical appliances and wiring. It is ideal for external lighting facilities requiring waterproof or weatherproof protection, such as street lights, garden lights, outdoor flood lights, landscape lights, as well as irrigation machines, solar equipment, outdoor LED displays, underground electrical systems, and more.
Specification:
Material: PC material
Color: Black
Specification: two-way, three-way and four-way(Optional)
Rated current: 24A
Rated voltage: 450V
Adaptation cable: 4-9MM(0.16-0.35in), 9-12MM(0.35-0.47in) or 12-15MM(0.47-0.59in)
Product performance: IP68 waterproof and dust proof grade, 94-V2 fire retardant

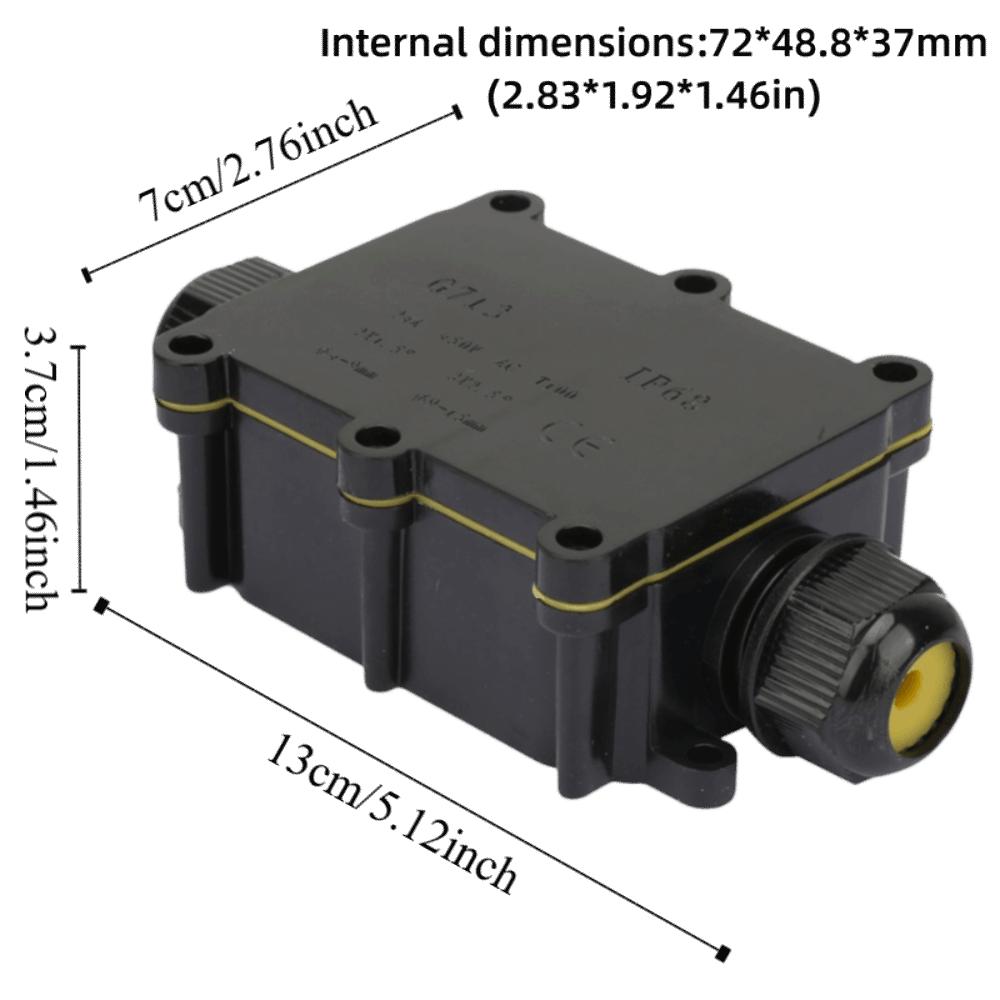

Internal dimensions:72*48.8*37mm(2.83*1.92*1.46in)
External dimensions:130*70*37mm(5.12*2.76*1.46in) for 2 Way
130*84*37mm(5.12*3.31*1.46in) for 3/4 Way

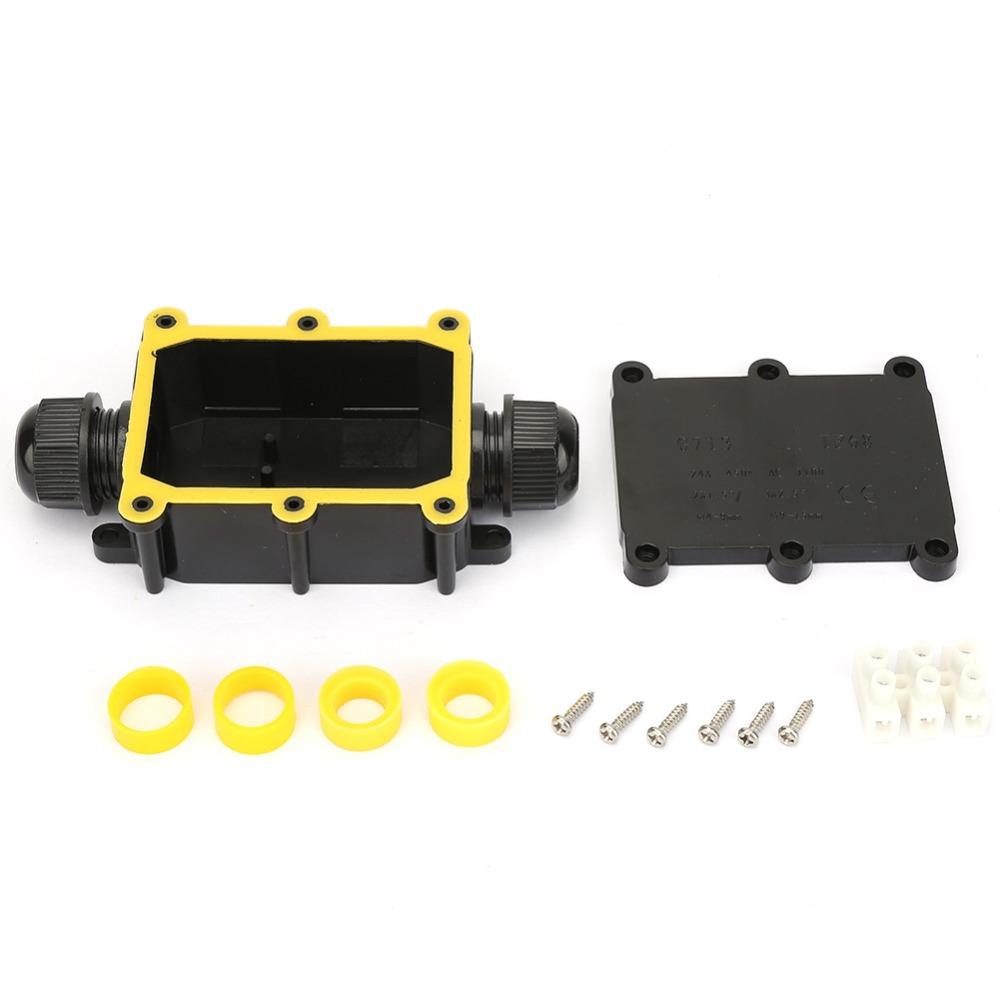

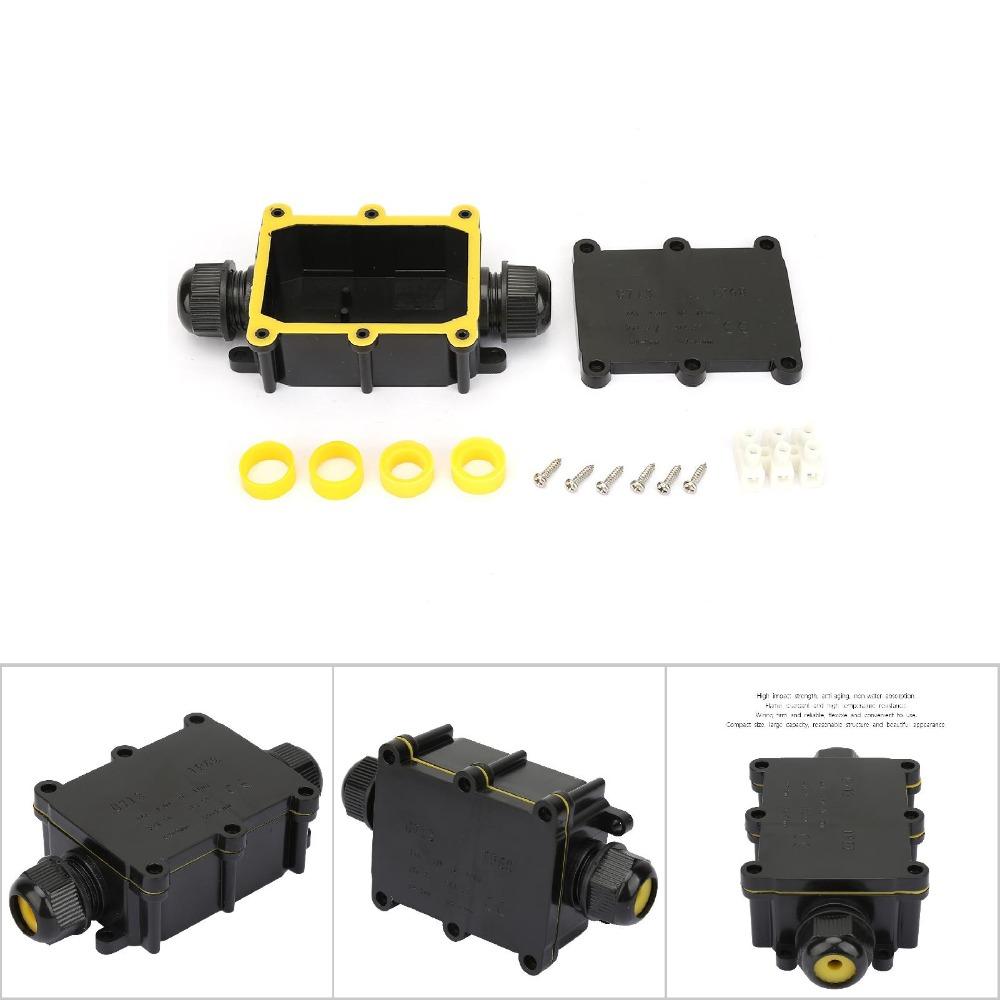

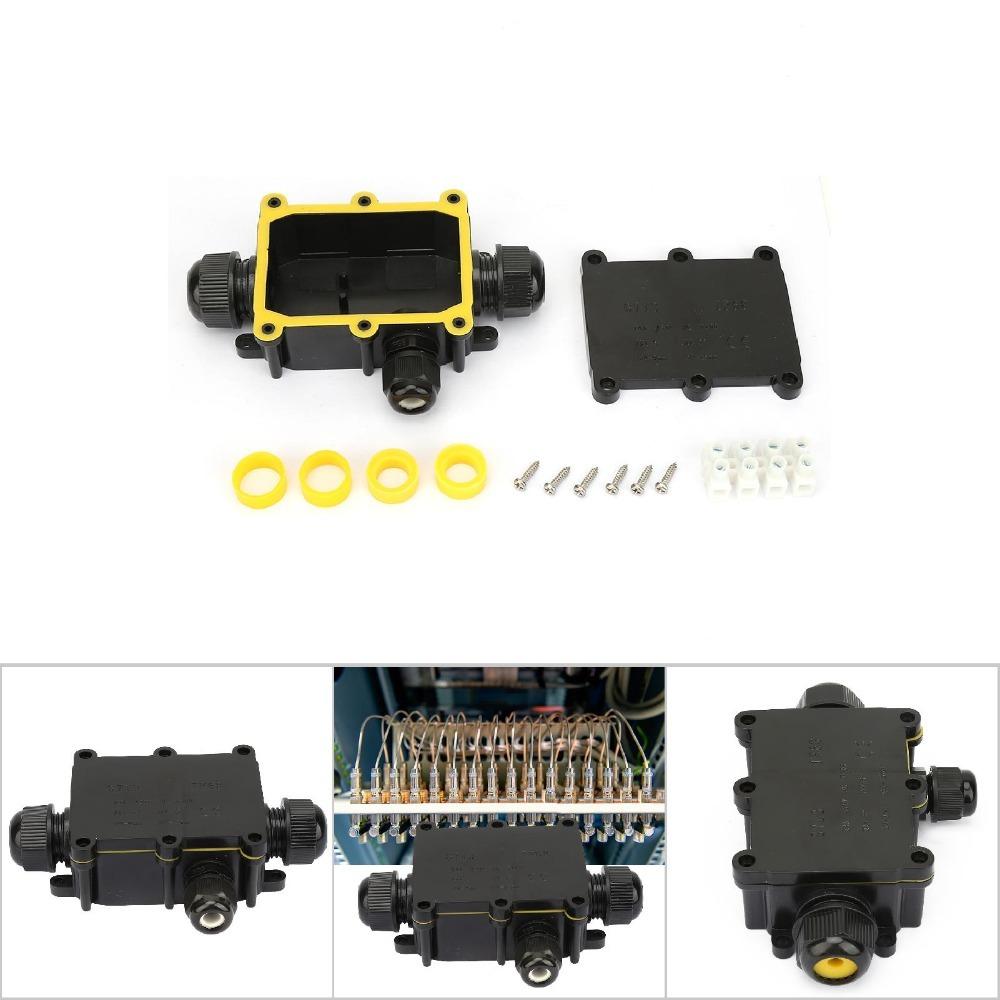

Package List:
2 x Seal Ring for 4-9mm(0.16-0.35in)
2 x Seal Ring for 9-12mm(0.35-0.47in)
2 x Seal Ring for 12-15mm(0.47-0.59in)
1 x Terminal
1 x Junction Box
1 x Silicone Seal Ring
1Bag x Screw
