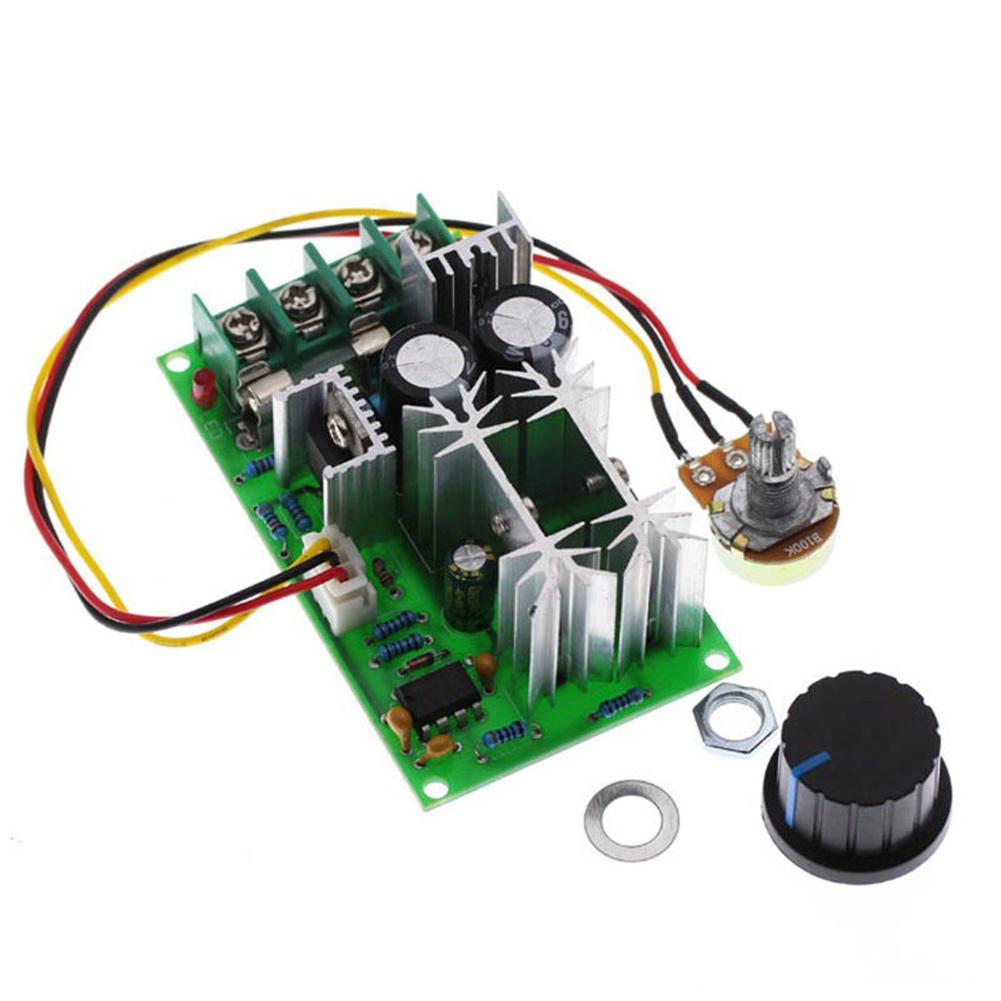

12V 24V 36V 48V PWM Motor Controller 20A PWM Controller Regulation Switch Adjustable DC Motor Speed Controller Switch High Power
Feature:
1. Efficient and Stable: This DC motor speed controller uses PWM technology (pulse width modulation), which features high conversion efficiency, a wide speed range and stable performance. It provides efficient and stable motor control, ensuring that the equipment remains in good condition for a long time during operation.
2. Durable: This PWM motor controller is made of PCB material, which has good durability and wear resistance to ensure long-term use. It is also packed in an anti-static bag to avoid static damage during transportation.
3. Wide Input Range: The current voltage regulator supports a wide input voltage range of DC 10V to DC 60V, compatible with a wide range of power supplies and with output currents up to 20A, which can meet the requirements of a wide range of engines, but please be careful not to exceed 10A, 450W and ensure good heat dissipation.
4. Easy to Use: The PWM drive module is very easy to wire, with screw terminals making it easy to connect and manipulate. It is also small in size, making it easy to store and use. At the same time, it is stable and easy to operate to meet the needs of different customers.
5. Safe and Reliable: Before using the PWM controller regulation switch, the user must ensure that the positive and negative terminals are connected correctly and that the wiring avoids touching the heatsink to avoid damaging the circuit board. It is important to note that this is not a power module and must be connected to a motor in order to regulate the speed. If the motor is not connected, the output of the multimeter will not change. By observing the relevant safety regulations, you can ensure that the product works safely and reliably.
Specification:
Certification: NONE
Origin: Mainland China
Motor Type: DC Motor
Model Number: PWM DC Motor Speed Controller
Input voltage: DC 10-60V
Output voltage: Linear under load
Output current: 20A (10A for long periods of time, within 450W, note to keep the module clear of thermal conditions)
Ultimate power: 1200W
Type of speed regulation: current regulation
Speed regulation mode: potentiometer (linear)
Speed regulation duty cycle range: 0--100%
Control frequency: 25KHZ
Wiring type: fence type terminals
Knob wire length: 20cm/7.9inch
Module size: L x W x H, 77 x 45 x 28mm/3.0 x 1.8 x 1.1inch
Main board pressed size: L x W, 73 x 40mm/2.9 x 1.6inch
Potentiometer pressed openings: 7mm/0.3inch
Wiring Diagram:
Input: 9-60V DC
Power supply: POWER+ POWRE-
Motor: MOTOR+ MOTOR-
Warm tips:
1. This speed governor is for use with DC brushed motors.
2. it is not suitable for speed regulation of brushless DC motors; nor can it be used as a voltage regulator or regulator!
